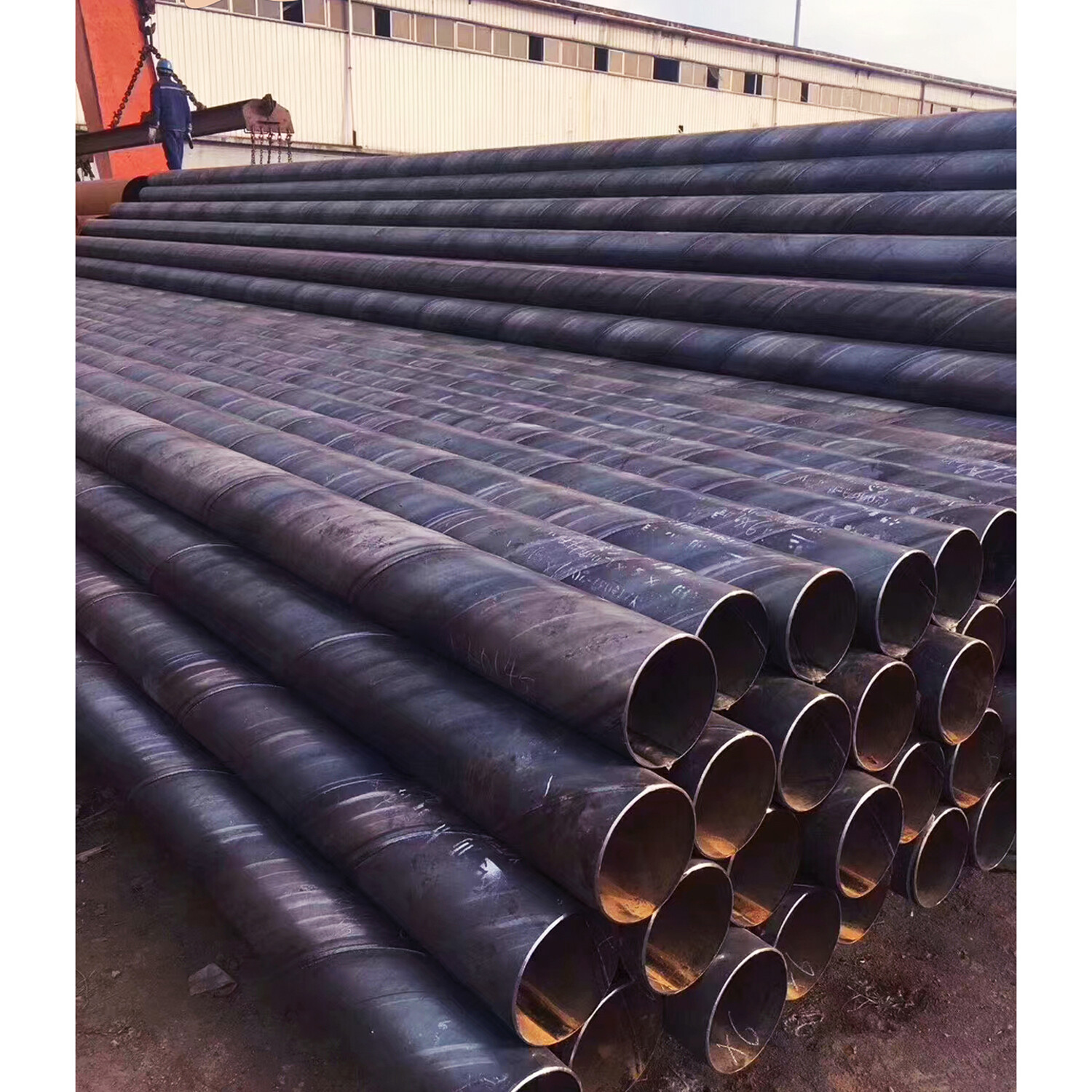

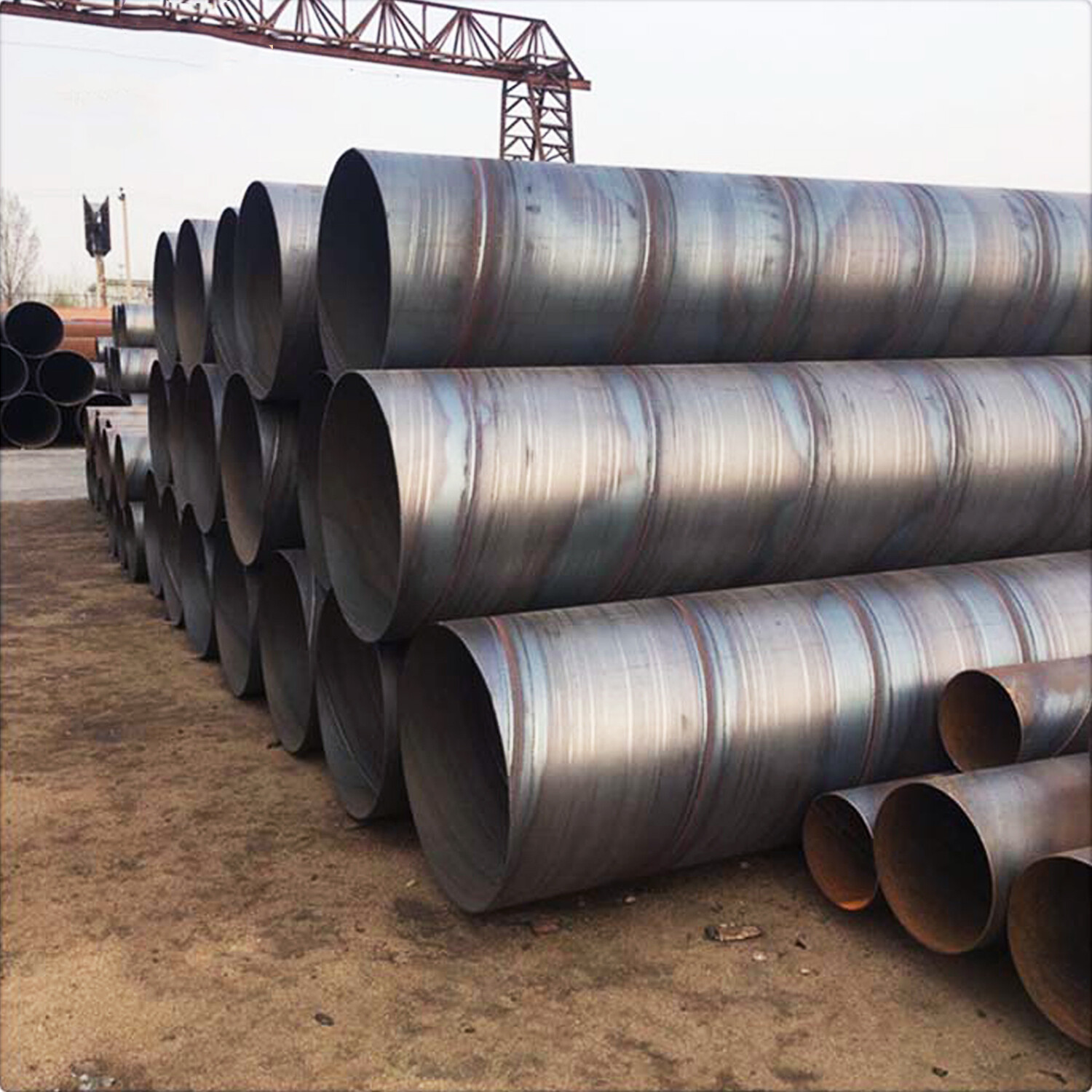

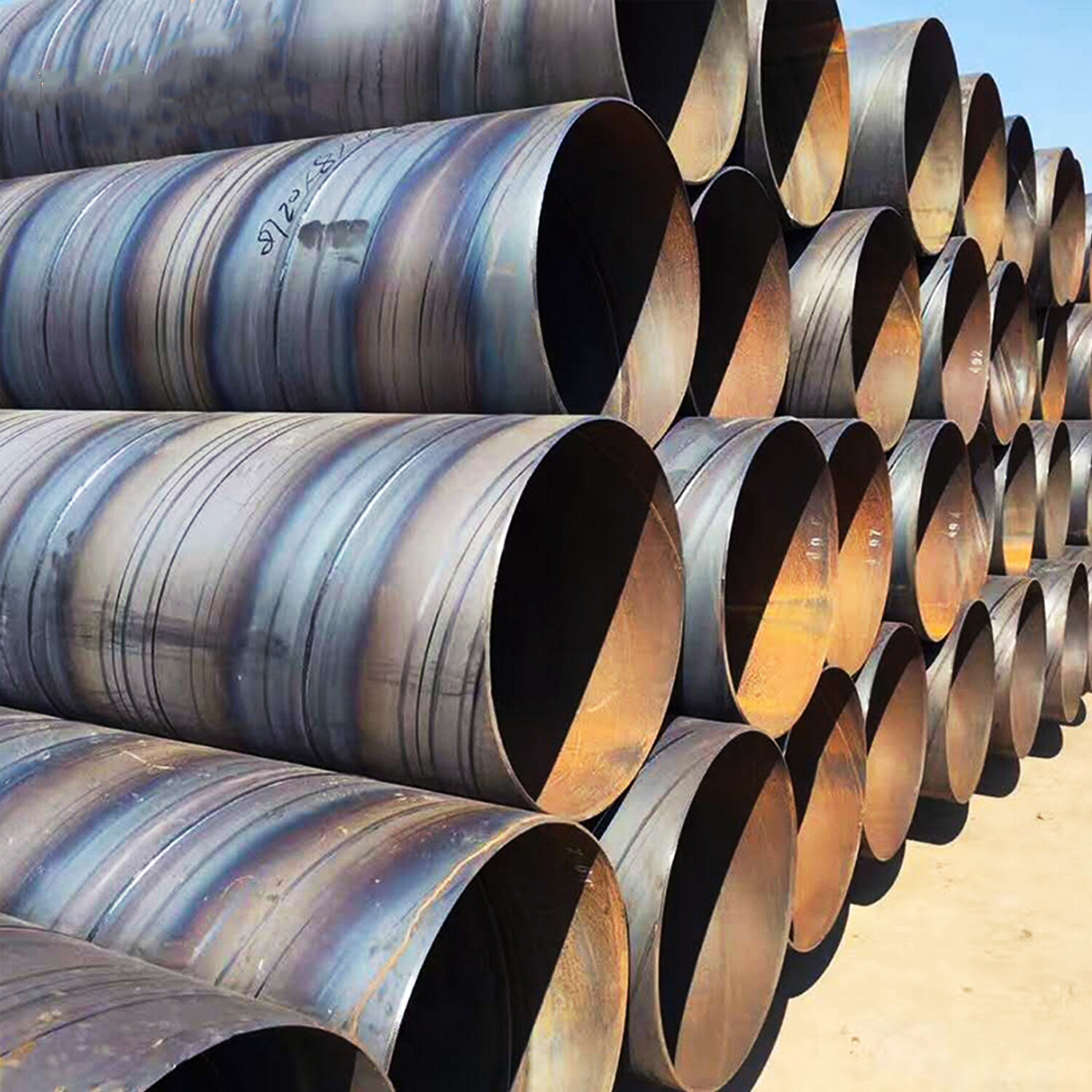

S235JR Spiral Steel Pipe

Spiral steel pipes are mainly used in water engineering, petrochemical industry, chemical industry, power industry, agricultural irrigation, urban construction, and are one of the twenty key products developed in China.
Used for liquid transportation: water supply and drainage. Used for gas transportation: coal gas, steam, liquefied petroleum gas. Used for structural purposes: as pile driving pipes, as bridges; Pipes for docks, roads, building structures, etc.

Send Email

Get A Free Quote

PRODUCT INTRODUCTION

Introduction

Pipe Type:SSAW Pipe,Spirally Submerged Arc Welding Pipe ,SAWH Pipe, Sprial Steel Pipe,Piling Structure SSAW Pipe

Specification: Outer diameter:219mm-4064mm

Wall thickness: 3.2mm-40mm

LENGTH:5.8/6/11.8/12/18/32meters

Standard & Grade:ASTM A53: Gr.A, Gr.B;API 5L:Gr.A,Gr.B,X42,X46, X52,X56,X60,X65 PSL1 and PSL2; ASTM A252, ASTM A500, JIS G3466, AN/NZS 1163, AN NZS1074, EN10219, EN10217 and etc.

End:Square Ends/Plain Ends (straight cut, saw cut, torch cut),Beveled/Threaded Ends

Surface:Black Painting/Oil Painting/Anti-Rust oil/Anti-Corrosive Coating

Application: Oil and gas pipeline, water transmission, liquid transportation, Building construction, Steel structure construction, Offshore/Onshore construction, Piling works, Electricity, Heating power and etc

Usage: Used for Oil and gas pipeline, water transmission, liquid transportation, Building construction, Steel structure construction, Offshore/Onshore construction, Piling works, Electricity, Heating power and etc

Test:Chemical Component Analysis, Mechanical Properties (Ultimate tensile strength, Yield strength, Elongation), Technical Properties (Flattening Test, Bending Test, Blow Test, Impact Test), Exterior Size Inspection, Hydrostatic Test, X-ray Test.

Process:

SSAW: Spiral Submerged-arc Welded

Quality Standard:

IS: 3589 Steel tubes for water and sewage

IS : 1978-1982:Steel tubes for use in transportation of oil; gas & Petroleum products

ASTM A53 Standard Specification for Pipe, Steel, Black and Hot-Dipped, Zinc-Coated, Welded and Seamless

DIN 2458 WELDED STEEL PIPES AND TUBES

EN10217 Welded steel tubes for pressure purposes. Technical delivery conditions. Non-alloy steel tubes with specified room temperature properties

API 5L Line Pipe

SY/T5037 Spiral submerged arc-welded steel pipe for pipelines for low pressure field fluid service

SY/T 5040 Spiral submerged arc-welded steel pipe piles

CJ/T 3022 Spiral submerged-arc welded steel pipe for municipal heat supply

IS : 1978 Steel tubes for use in transportation of oil; gas & Petroleum products

ASTM A252 WELDED AND SEAMLESS STEEL PIPE PILES

Coating Standard:

ANSI/AWWA C104/A21.4 American National Standard for Cement-Mortar Lining for Ductile-Iron Pipe and Fittings for Water

ISO 21809 Petroleum and natural gas industries — External coatings for buried or submerged pipelines used in pipeline transportation systems

DIN 30670 Polyethylen coatings of steel pipes and fittings

Steel Grade:

EN: S235JR,S235J0, S235J2, S275JR,S275J0, S355JR, S355J0,S355J2H,S460,S690,

DIN: St12, St13, St14, St33, St37, St44, ST52

ASTM A 53: Gr. A, Gr B, Gr C, Gr.D

API 5L: A, B, X42, X46, X52, X56, X60, X65 X70

GB/T9711: L175, L210, L245, L290, L320, L360, L290, L320, L360, L390, L415, L450, L485, L555

Specification
Out Diameter	Wall Thickness (mm)
mm	6	7	8	9	10	11	12	13	14	15	16	17	18	19	20	21	22	23	24	25
219.1	.	.	.	.
273	.	.	.	.	.
323.9	.	.	.	.	.	.	.
325	.	.	.	.	.	.	.
355.6	.	.	.	.	.	.	.
377	.	.	.	.	.	.	.	.
406.4	.	.	.	.	.	.	.
426	.	.	.	.	.	.	.
457	.	.	.	.	.	.	.
478	.	.	.	.	.	.	.
508	.	.	.	.	.	.	.		.
529	.	.	.	.	.	.	.		.
630	.	.	.	.	.	.	.		.	.
711	.	.	.	.	.	.	.	.	.	.	.
720	.	.	.	.	.	.	.	.	.	.	.
813		.	.	.	.	.	.	.	.	.	.	.	.
820		.	.	.		.	.	.	.	.	.	.	.
920			.	.		.	.	.	.	.	.	.	.
1020			.	.	.	.	.	.	.	.	.	.	.	.	.
1220			.	.	.	.	.	.	.	.	.	.	.	.	.
1420				.	.	.	.	.	.	.		.	.	.	.
1620					.	.	.	.	.	.	.	.	.	.	.
1820						.	.	.	.	.	.	.	.	.	.
2020							.	.	.	.	.	.	.	.	.
2220								.	.	.	.	.	.	.	.
2500								.	.	.	.	.	.	.	.	.	.	.	.	.
2540									.	.	.	.	.	.	.	.	.	.	.	.
3500										.	.	.	.	.	.	.	.	.	.

Chemical Analysis and Mechanical Properties of SSAW Steel Pipe
Standard	Grade	Chemical Composition(max)%					Mechanical Properties(min)
Standard	Grade	C	Si	Mn	P	S	Tensile Strength(Mpa)	Yield Strength(Mpa)
API 5L PSL1	A	0.22	-	0.9	0.03	0.03	335	335
	B	0.26	-	1.2	0.03	0.03	415	415
	X42	0.26	-	1.3	0.03	0.03	415	415
	X46	0.26	-	1.4	0.03	0.03	435	435
	X52	0.26	-	1.4	0.03	0.03	460	460
	X56	0.26	-	1.4	0.03	0.03	490	490
	X60	0.26	-	1.4	0.03	0.03	520	520
	X65	0.26	-	1.45	0.03	0.03	535	535
	X70	0.26	-	1.65	0.03	0.03	570	570
API 5L PSL2	B	0.22	0.45	1.2	0.025	0.015	415	415
	X42	0.22	0.45	1.3	0.025	0.015	415	415
	X46	0.22	0.45	1.4	0.025	0.015	435	435
	X52	0.22	0.45	1.4	0.025	0.015	460	460
	X56	0.22	0.45	1.4	0.025	0.015	490	490
	X60	0.12	0.45	1.6	0.025	0.015	520	520
	X65	0.12	0.45	1.6	0.025	0.015	535	535
	X70	0.12	0.45	1.7	0.025	0.015	570	570
	X80	0.12	0.45	1.85	0.025	0.015	625	625
ASTM A53	A	0.25	0.1	0.95	0.05	0.045	330	330
ASTM A53	B	0.3	0.1	1.2	0.05	0.045	415	415
ASTM A252	1	-	-	-	0.05	-	345	345
	2	-	-	-	0.05	-	414	414
	3	-	-	-	0.05	-	455	455
EN10217-1	P195TR1	0.13	0.35	0.7	0.025	0.02	320	320
	P195TR2	0.13	0.35	0.7	0.025	0.02	320	320
	P235TR1	0.16	0.35	1.2	0.025	0.02	360	360
	P235TR2	0.16	0.35	1.2	0.025	0.02	360	360
	P265TR1	0.2	0.4	1.4	0.025	0.02	410	410
	P265TR2	0.2	0.4	1.4	0.025	0.02	410	410
EN10217-2	P195GH	0.13	0.35	0.7	0.025	0.02	320	320
	P235GH	0.16	0.35	1.2	0.025	0.02	360	360
	P265GH	0.2	0.4	1.4	0.025	0.02	410	410
EN10217-5	P235GH	0.16	0.35	1.2	0.025	0.02	360	360
EN10217-5	P265GH	0.2	0.4	1.4	0.025	0.02	410	410
EN10219-1	S235JRH	0.17	-	1.4	0.04	0.04	360	360
	S275JOH	0.2	-	1.5	0.035	0.035	410	410
	S275J2H	0.2	-	1.5	0.03	0.03	410	410
	S355JOH	0.22	0.55	1.6	0.035	0.035	470	470
	S355J2H	0.22	0.55	1.6	0.03	0.03	470	470
	S355K2H	0.22	0.55	1.6	0.03	0.03	470	470

Standard and Classfication
Classfication	Standard	Main Products
Steel Pipe for Fluid Service	GB/T 14291	Welded pipe for mine fluid sevice
	GB/T 3091	Welded pipe for low pressure fluid service
	SY/T 5037	Spirally submerged arc welded steel pipe for pipelines for low pressure fluid service
	ASTM A53	Black and hot-hipped galvanized welded and seamless steel pipe
	BS EN10217-2	Welded steel tybes for pressure purposes – delivery technical conditions – part2: Electric welded non- alloy and alloy steel tubes with specified elevated temperature properties
	BS EN10217-5	Welded steel tybes for pressure purposes – delivery technical conditions – part5: submerged arc welded non-alloy and alloy steel tubes with specified elevated temperature properties
Steel Pipe for Ordinary Structure	GB/T 13793	Longitudinally electric resistance welded steel pipe
	SY/T 5040	Spirally submerged arc welded steel pipe piles
	ASTM A252	Welded and seamless steel pipe piles
	BS EN10219-1	Cold formed welded structural hollow sections of non-alloy and fine grain steels – part1: Technical delivert conditions
	BS EN10219-2	Cold formed welded structural hollow sections of non-alloy and fine grain steels – part2: tolerances dimmsions and sectional properties
Line Pipe	GB/T 9711.1	Steel pipe for pipeline transportation system of petroleum and natural gas industries(Class A steel pipe)
	GB/T 9711.2	Steel pipe for pipeline transportation system of petroleum and natural gas industries(Class B steel pipe)
	API 5L PSL1/2	Line pipe
Casing	API 5CT	Steel pipe for use as casing or tubing for wells of petroleum and natural gas industries

Tolerance of Outside Diameter and Wall Thickness of SSAW Steel Pipe
Standard	Tolerance of Pipe Body		Tolerance of Pipe End		Tolerance of Wall Thickness
Standard	Out Diameter	Tolerance	Out Diameter	Tolerance	Tolerance of Wall Thickness
GB/T3091	OD≤48.3mm	≤±0.5	OD≤48.3mm	–	≤±10%
	48.3 ≤219mm	≤±1.0%	48.3	–
	48.3 ≤219mm	≤±1.0%	≤273.1mm	–
	219 ≤508mm	≤±0.75%	219	-0.8～+2.4
	219 ≤508mm	≤±0.75%	≤508mm	-0.8～+2.4
	OD>508mm	≤±1.0%	OD>508mm	-0.8～+3.2
GB/T9711.1	OD≤48.3mm	-0.79～+0.41	–	–	OD≤73	-12.5%～+20%
	60.3 ≤457mm	≤±0.75%	OD≤219mm	-0.4～+1.59	88.9≤OD≤457	-12.5%～+15%
	508 ≤941mm	≤±1.0%	OD≥323.9	-0.79～+2.38	OD≥508	-10.0%～+17.5%
	OD>941mm	≤±1.0%	–	–	–	–
GB/T9711.2	60 ≤610mm	±0.75%D～±3mm	60 ≤610mm	±0.5%D～±1.6mm	4mm	±12.5%T～±15.0%T
	610 ≤1430mm	±0.5%D～±4mm	610 ≤1430mm	±0.5%D～±1.6mm	WT≥25mm	-3.00mm～+3.75mm
	OD>1430mm	–	OD>1430mm	–	–	-10.0%～+17.5%
SY/T5037	OD<508mm	≤±0.75%	OD<508mm	≤±0.75%	OD<508mm	≤±12.5%
SY/T5037	OD≥508mm	≤±1.00%	OD≥508mm	≤±0.50%	OD≥508mm	≤±10.0%
API 5L PSL1/PSL2	OD<60.3	-0.8mm～+0.4mm	OD≤168.3	-0.4mm～+1.6mm	WT≤5.0	≤±0.5
	60.3≤OD≤168.3	≤±0.75%	168.3 ≤610	≤±1.6mm	5	≤±0.1T
	168.3 ≤610	≤±0.75%	610 ≤1422	≤±1.6mm	T≥15.0	≤±1.5
	610 ≤1422	≤±4.0mm	OD>1422	–	–	–
	OD>1422	–	–	–	–	–
API 5CT	OD<114.3	≤±0.79mm	OD<114.3	≤±0.79mm	≤-12.5%
API 5CT	OD≥114.3	-0.5%～1.0%	OD≥114.3	-0.5%～1.0%	≤-12.5%
ASTM A53	≤±1.0%		≤±1.0%		≤-12.5%
ASTM A252	≤±1.0%		≤±1.0%		≤-12.5%

PRODUCT SHOW

APPLICATION

PACKAGING AND TRANSPORTATION

FACTORY DISPLAY

FAQ

Q: Are You Manufacture or Trade Company?

A: We are the professional manufacturer of steel products located in HEBEI, China. Welcome to contact us and visit our factory before you place orders.

Q: How do you guarantee the quality?

A: We can send free samples to you, we can accept third-party testing.
We also have test certificate, every batch goods will be testing before shipment, and the testing report will delivery to you with your goods.

Q: Can I get free samples?

A: Of course you can. We can produce according to your samples or technical drawings. Contact us by whatsapp or email to get free samples and you will get the sample after 3-7 working days.
